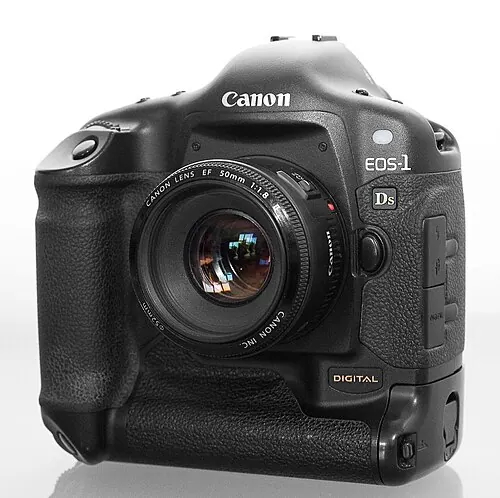

Canon EOS-1Ds Specs, Sensor Size & Crop Factor

Q: What is the crop factor of the Canon EOS-1Ds?

The Canon EOS-1Ds has a crop factor of 1.01× relative to 35 mm full frame (diagonal 43.0 mm vs 43.3 mm).

1.01×

Crop factor

35.8×23.8 mm

Sensor size

852 mm²

Area · 99% of full frame

11.1 MP

Resolution

8.81 µm

Pixel pitch

f/13.1

Diffraction-limited aperture

2002

Release year

Specifications#

Brand: Canon
Model: EOS-1Ds
Camera type: DSLR
Released: 2002-01-01
Lens mount: Canon EF
Sensor size: 35.8 × 23.8 mm (Full frame (35 mm))
Crop factor: 1.01×
Resolution: 11.1 MP (4,064 × 2,704 px)
ISO range: 100 – 1,250
Continuous shooting: 3 fps
Weight: 1,265 g (44.6 oz)
Sensor type: CMOS
Storage: CompactFlash (Type I or Type II) / max 8 GB
Viewfinder: Fixed eye-level pentaprism
AF points / area: 45 points
Metering: 21-zone TTL full aperture
Shutter: Electronically controlled focal-plane
Battery: NP-E3 1650mAh, 19.8Wh Ni-MH rechargeable battery
Dimensions: 156 *
Lens: Interchangeable
Predecessor: Canon EOS-1V, Canon EOS-1D
Successor: Canon EOS-1Ds Mark II
Drive: approx 3 frame/s, 10 shot burst max

Specifications merged from Wikipedia, Wikidata, Lensfun and openMVG. Spot an error? Tell us.

Sensor size compared#

The Canon EOS-1Ds sensor (highlighted) drawn to scale against common formats. Its area is 99% of a full-frame sensor.

Focal length equivalents & field of view#

Multiply any focal length by 1.01 to get the full-frame field of view. Angles are for a rectilinear lens focused at infinity.

Lens on this camera	Full-frame equivalent	Horizontal	Vertical	Diagonal
10 mm	10 mm	121.6°	99.9°	130.1°
12 mm	12 mm	112.3°	89.5°	121.7°
14 mm	14 mm	103.9°	80.7°	113.8°
16 mm	16 mm	96.4°	73.3°	106.7°
18 mm	18 mm	89.7°	66.9°	100.1°
20 mm	20 mm	83.7°	61.5°	94.1°
24 mm	24 mm	73.4°	52.7°	83.7°
28 mm	28 mm	65.2°	46.1°	75.0°
35 mm	35 mm	54.2°	37.6°	63.1°
40 mm	40 mm	48.2°	33.1°	56.5°
50 mm	50 mm	39.4°	26.8°	46.5°
56 mm	56 mm	35.5°	24.0°	42.0°
70 mm	70 mm	28.7°	19.3°	34.1°
85 mm	86 mm	23.8°	15.9°	28.4°
100 mm	101 mm	20.3°	13.6°	24.3°
135 mm	136 mm	15.1°	10.1°	18.1°
200 mm	201 mm	10.2°	6.8°	12.3°
300 mm	302 mm	6.8°	4.5°	8.2°
400 mm	403 mm	5.1°	3.4°	6.2°
600 mm	604 mm	3.4°	2.3°	4.1°
800 mm	805 mm	2.6°	1.7°	3.1°

Depth of field table#

Total depth of field at each subject distance, using a circle of confusion of 29.8 µm (the 0.030 mm full-frame standard scaled by the crop factor). Detailed tables: 24 mm f/1.8, 24 mm f/2.8, 35 mm f/1.8, 35 mm f/2.8, 50 mm f/1.8, 50 mm f/2.8.

Focal	Aperture	50.0 cm	1.00 m	2.00 m	3.00 m	5.00 m	10.0 m	Hyperfocal
22 mm	f/1.8	5.3 cm	21.9 cm	92.1 cm	2.22 m	7.93 m	∞	9.04 m
22 mm	f/2.8	8.3 cm	34.7 cm	1.54 m	4.18 m	32.6 m	∞	5.82 m
22 mm	f/4	11.9 cm	51.2 cm	2.56 m	9.53 m	∞	∞	4.08 m
22 mm	f/8	24.9 cm	1.26 m	77.5 m	∞	∞	∞	2.05 m
43 mm	f/1.8	1.3 cm	5.6 cm	22.8 cm	51.9 cm	1.47 m	6.30 m	34.5 m
43 mm	f/2.8	2.1 cm	8.7 cm	35.6 cm	81.5 cm	2.36 m	11.3 m	22.2 m
43 mm	f/4	2.9 cm	12.4 cm	51.3 cm	1.19 m	3.56 m	21.8 m	15.6 m
43 mm	f/8	5.9 cm	25.1 cm	1.08 m	2.68 m	10.8 m	∞	7.80 m
73 mm	f/1.8	0.4 cm	1.9 cm	7.8 cm	17.7 cm	49.7 cm	2.02 m	99.4 m
73 mm	f/2.8	0.7 cm	2.9 cm	12.1 cm	27.6 cm	77.6 cm	3.19 m	63.9 m
73 mm	f/4	1.0 cm	4.1 cm	17.3 cm	39.5 cm	1.12 m	4.67 m	44.8 m
73 mm	f/8	1.9 cm	8.3 cm	34.8 cm	80.0 cm	2.32 m	11.1 m	22.4 m
120 mm	f/1.8	0.1 cm	0.7 cm	2.8 cm	6.4 cm	18.2 cm	73.7 cm	269 m
120 mm	f/2.8	0.2 cm	1.0 cm	4.4 cm	10.0 cm	28.3 cm	1.15 m	173 m
120 mm	f/4	0.3 cm	1.5 cm	6.2 cm	14.3 cm	40.5 cm	1.65 m	121 m
120 mm	f/8	0.6 cm	2.9 cm	12.5 cm	28.7 cm	81.3 cm	3.36 m	60.5 m

Equivalent aperture#

Exposure is identical at the same f-number on any format; equivalence only describes depth of field and total light.

Aperture on this camera	Full-frame equivalent (depth of field)	Hyperfocal at 43 mm
f/1.2	f/1.2	51.7 m
f/1.4	f/1.4	44.4 m
f/1.8	f/1.8	34.5 m
f/2	f/2.0	31.1 m
f/2.8	f/2.8	22.2 m
f/4	f/4.0	15.6 m
f/5.6	f/5.6	11.1 m
f/8	f/8.1	7.80 m

Diffraction & pixel pitch#

With 8.81 µm pixels, diffraction starts to soften pixel-level detail around f/13.1. For maximum sharpness keep landscapes between f/7.2 and f/13; stopping down further trades detail for depth of field.

Aperture	Airy disk diameter	Spread over	At 100% view
f/2.8	3.8 µm	0.4 px	sharp
f/4	5.4 µm	0.6 px	sharp
f/5.6	7.5 µm	0.9 px	sharp
f/8	10.7 µm	1.2 px	sharp
f/11	14.8 µm	1.7 px	sharp
f/16	21.5 µm	2.4 px	slight softening
f/22	29.5 µm	3.4 px	visibly soft

Maximum print sizes#

At 11.1 MP the Canon EOS-1Ds produces 4,064 × 2,704 pixel images. See the 12 megapixel guide or the print size calculator.

Resolution	Typical use	Inches	Centimetres
300 DPI	Photo-lab quality	13.5 × 9.0 in	34 × 23 cm
240 DPI	Fine-art inkjet	16.9 × 11.3 in	43 × 29 cm
200 DPI	Wall print	20.3 × 13.5 in	52 × 34 cm
150 DPI	Poster, viewed from 1 m+	27.1 × 18.0 in	69 × 46 cm

Night-sky exposure limits#

Longest exposure before stars trail. The NPF rule accounts for pixel pitch and is stricter than the classic 500 rule — use it for pin-sharp stars on high-resolution sensors.

Focal length	500 rule	NPF f/1.8	NPF f/2.8	NPF f/4
14 mm (14 mm eq.)	35.5 s	23.4 s	25.9 s	28.9 s
20 mm (20 mm eq.)	24.8 s	16.4 s	18.1 s	20.2 s
24 mm (24 mm eq.)	20.7 s	13.6 s	15.1 s	16.8 s
35 mm (35 mm eq.)	14.2 s	9.4 s	10.4 s	11.6 s
50 mm (50 mm eq.)	9.9 s	6.5 s	7.2 s	8.1 s

Open the NPF / 500 rule calculator →

Handheld shutter speed guide#

The reciprocal rule uses the equivalent focal length. High-resolution sensors may need one stop faster than this for pixel-sharp results.

Focal length	No stabilisation (1/equiv. focal)	With 3-stop IS	With 5-stop IBIS
24 mm	1/25 s	0.3 s	1.3 s
50 mm	1/50 s	1/6 s	0.6 s
99 mm	1/100 s	1/13 s	0.3 s
199 mm	1/200 s	1/25 s	1/6 s

Lenses for the Canon EOS-1Ds#

Native Canon EF lenses in our database (267 total). Also adaptable: T-mount (T2), M42 screw mount, Deckel (DKL), Tamron Adaptall, M39 / LTM (Leica thread).

Samyang 8mm f/3.5 Fish-Eye CS 8 mm
Samyang 10mm f/2.8 ED AS NCS CS 10 mm
Laowa 12mm f/2.8 Zero-D 12 mm
Samyang 12mm f/2.8 Fish-Eye ED AS NCS 12 mm
Canon EF 14mm f/2.8L II USM 14 mm
Samyang 14mm f/2.8 AE ED AS IF UMC 14 mm
Samyang AF 14mm f/2.8 14 mm
Sigma 14mm f/1.8 DG HSM | A 14 mm
Laowa 15mm F/4 Wide Angle Macro 15 mm
Canon EF 16-35mm f/4L IS USM 16–35 mm
Samyang 16mm f/2.0 ED AS UMC CS 16 mm
Samyang 20mm f/1.8 ED AS UMC 20 mm
Canon EF 24mm f/1.4L II USM 24 mm
Samyang 24mm f/1.4 ED AS IF UMC 24 mm
Samyang T-S 24mm f/3.5 ED AS UMC 24 mm
Sigma 24mm f/1.4 DG HSM | A 24 mm
Sigma 28mm F1.4 DG HSM | Art 28 mm
Viltrox AF 33mm f/1.4 XF 33 mm
Sigma 40mm F1.4 DG HSM | Art 40 mm
Canon EF 50mm f/1.8 50 mm
Canon EF 50mm f/1.8 II 50 mm
Canon EF 50mm f/1.8 STM 50 mm
Viltrox AF 56mm f/1.4 XF 56 mm
Laowa 60mm f/2.8 2X Ultra-Macro 60 mm
Canon EF 70-200mm f/2.8L IS II USM 70–200 mm
Sigma 70-200mm F2.8 DG OS HSM | S 70–200 mm
Samyang 85mm f/1.4 IF UMC Aspherical 85 mm
Sigma 100-400mm F5-6.3 DG OS HSM | C 100–400 mm
Sigma 100-400mm f/5-6.3 DG OS HSM | C +1.4x ext. 100–400 mm
Sigma 105 mm F1.4 DG HSM Art 105 mm
Samyang 135mm f/2 ED UMC 135 mm
Sigma 4.5mm f/2.8 EX DC HSM circular fisheye 4.5 mm
Canon EF 8-15mm f/4L Fisheye USM 8–15 mm
Sigma 8-16mm f/4.5-5.6 DC HSM 8–16 mm
Sigma 8mm f/3.5 EX DG circular fisheye 8 mm
Samyang XP 10mm f/3.5 10 mm

Similar cameras#

Other Full frame (35 mm) cameras from around the same time.

Frequently asked questions#

What is the crop factor of the Canon EOS-1Ds?

The Canon EOS-1Ds has a crop factor of 1.01× relative to 35 mm full frame (diagonal 43.0 mm vs 43.3 mm).

What size is the Canon EOS-1Ds sensor?

35.8 × 23.8 mm (Full frame (35 mm)), an area of 852 mm² — 99% of full frame.

Is the Canon EOS-1Ds full frame?

Yes — its sensor is the same 36 × 24 mm size as 35 mm film.

How many megapixels does the Canon EOS-1Ds have?

11.1 megapixels (4,064 × 2,704 pixels), enough for a 14 × 9 inch print at 300 DPI.

What lens mount does the Canon EOS-1Ds use?

The Canon EOS-1Ds uses the Canon EF (flange distance 44.00 mm).

How long can I expose the night sky with the Canon EOS-1Ds?

With a 20 mm lens (20 mm equivalent) the 500 rule gives 25 s and the stricter NPF rule at f/2.8 gives 18 s.
